Basic Information

Rated temperature: 150℃
Rated voltage: 600V
According to: UL758 UL1581 CSA C22.2

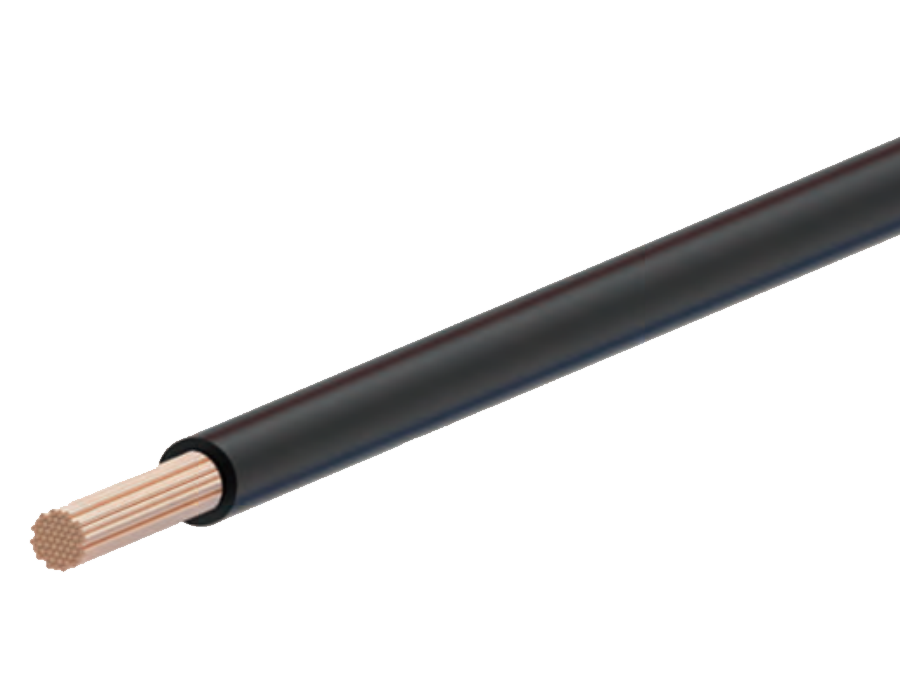

The conductor is made of single or twisted 30-4/0AWG tinned or bare copper wire
The insulation/sheath is made of 150℃ irradiated cross-linked polyolefin material
Environmental requirements: Compliant with RoHS standards
The product is widely used for external interconnection or internal wiring

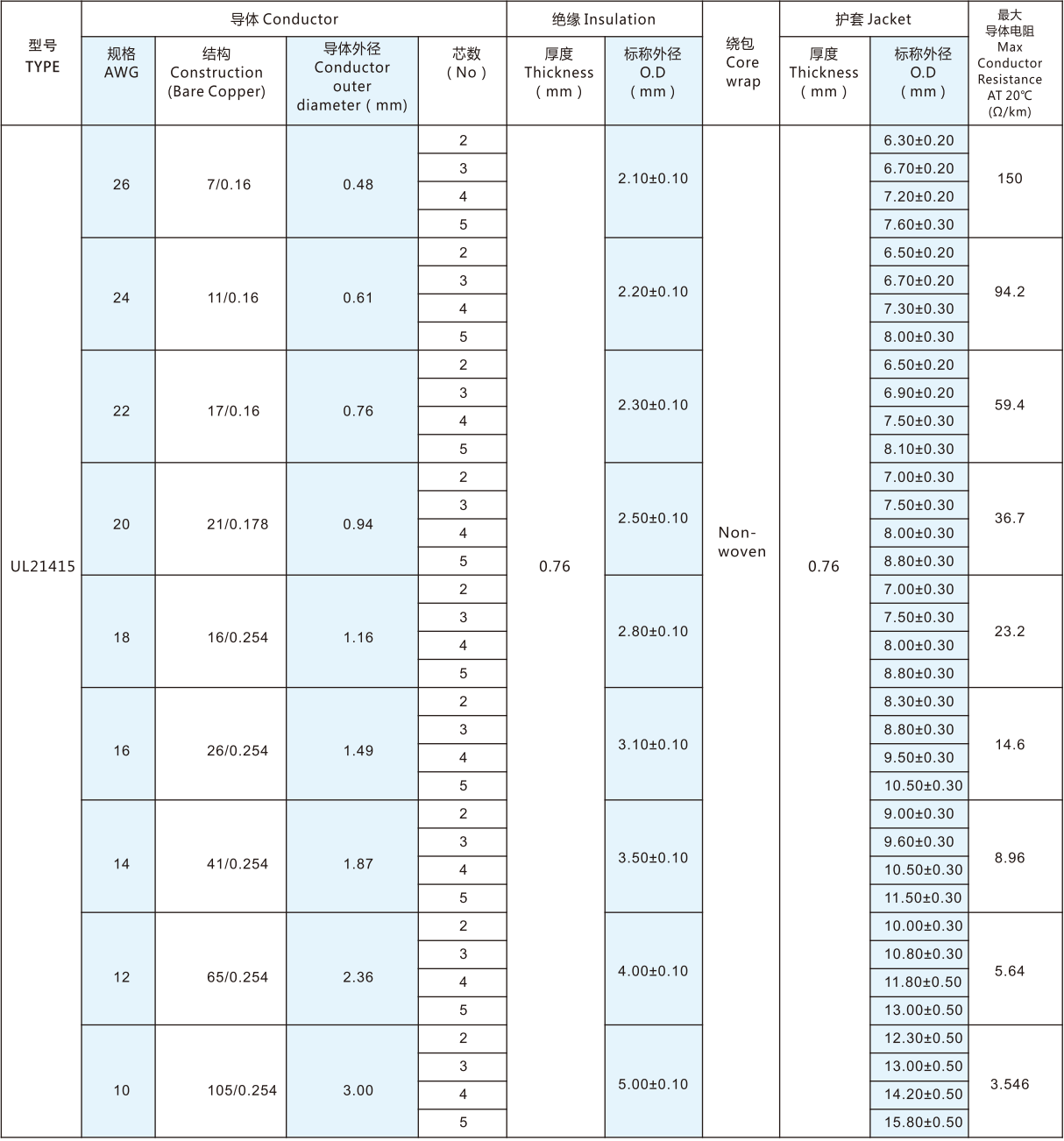

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
