Basic Information

Rated temperature: 125℃
Rated voltage: 300V
According to: UL758, UL1581, CSA C22.2
Solid or Stranded, tinned or bare copper conductor 32-10AWG
The insulation is made of irradiated cross-linked flame-retardant polyolefin material
Environmental requirements: Compliant with RoHS standards
Use for general electric equipment internal wiring

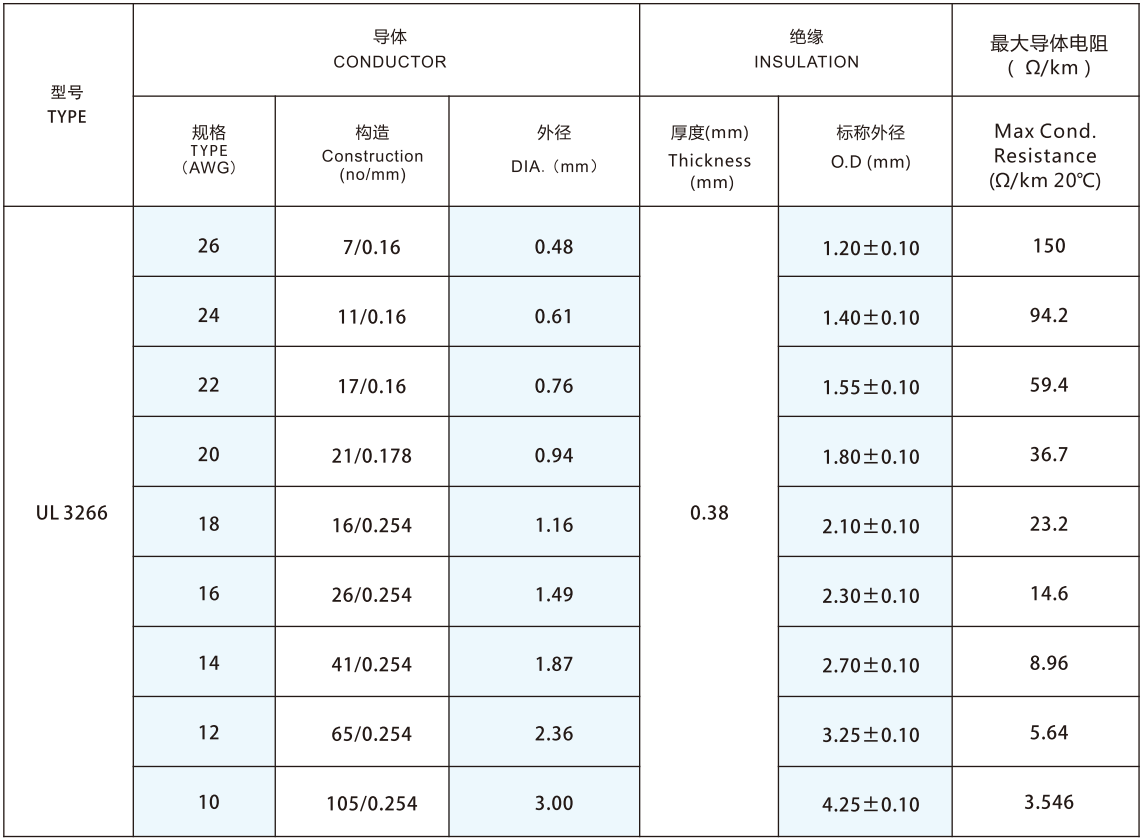

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
