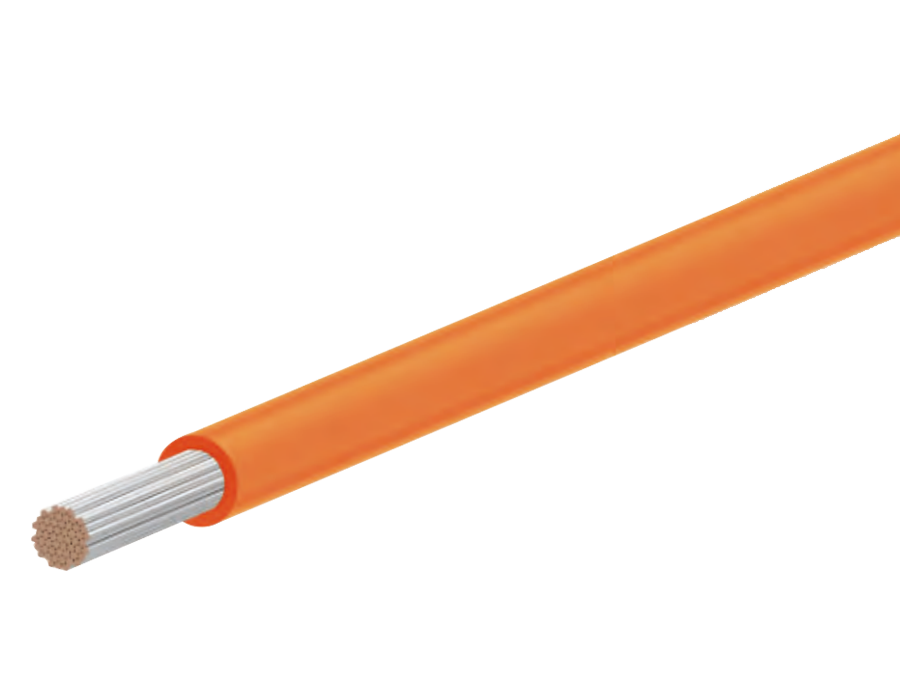

ES-H09V-F/H
聚氯乙烯絕緣電力儲能系統用電池連接無護套電纜
TüV SüD耐熱90℃/DC 900V
Contact us for details or customization
Sales Hotline:
0510-8815 7898
Product Details
Basic Information
Rated temperature: 90℃
Rated voltage: 900V
According to: PPP 58049A:2019
The conductor adopts IEC60228-2004 standard Class 5 or Class 6 conductor 4.0-240mm2 tin plated or bare copper
Insulation is made of heat-resistant 90℃ PVC
Environmental requirements: Compliant with RoHS standards
The product is widely used in cables between battery modules on the DC side, between battery clusters, between battery clusters and combiner boxes or between battery clusters and energy storage converters in power energy storage systems

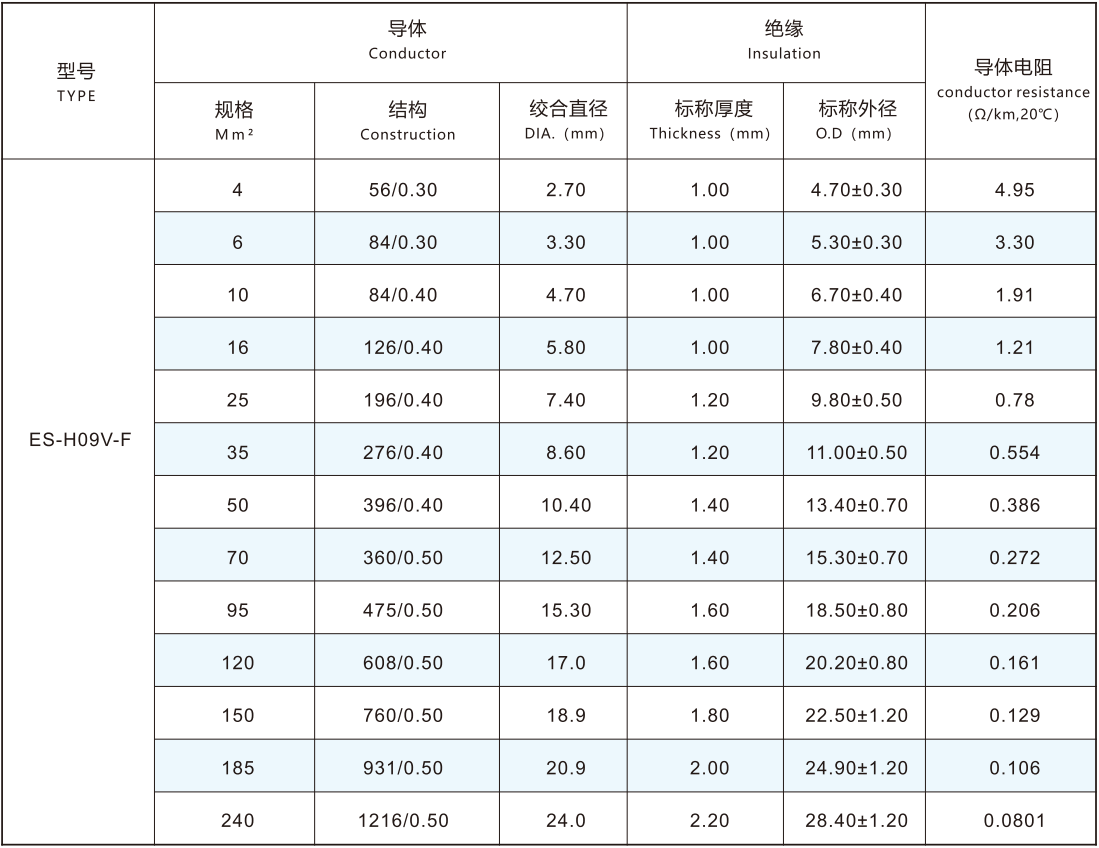

Technical Parameters
*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
