Basic Information

Rated temperature: 125℃
Rated voltage: 1500V
According to: PPP 58049A:2019

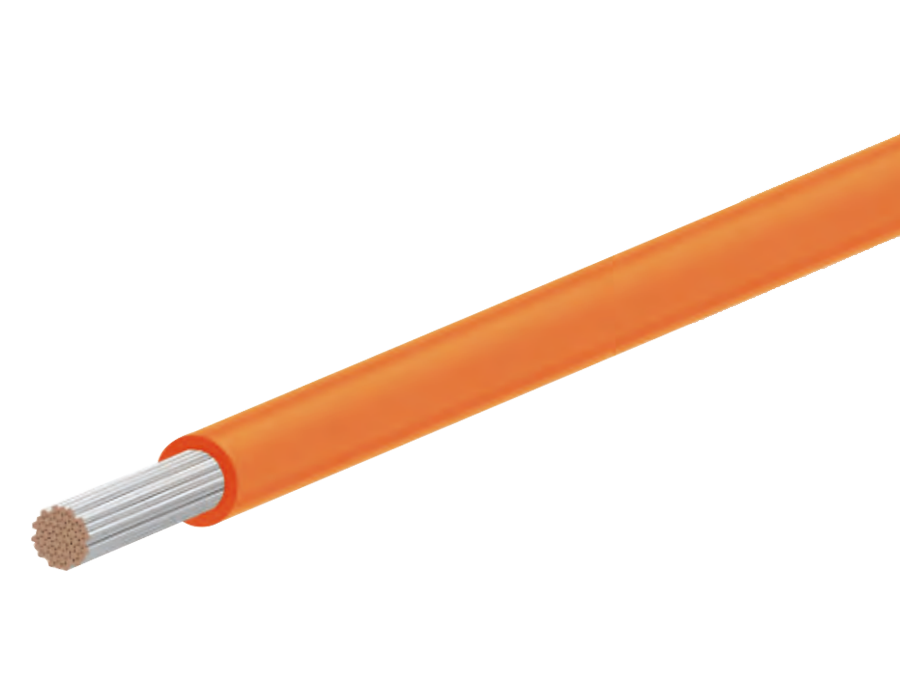

The conductor adopts IEC60228-2004 standard Class 5 or Class 6 conductor 4.0-240mm2 tin plated or bare copper
The insulation is made of heat-resistant 125℃ low-smoke halogen-free flame-retardant cross-linked polyolefir material
Environmental requirements: Compliant with RoHS standards
The product is widely used in cables between battery modules on the DC side, between battery clusters, between battery clusters and combiner boxes or between battery clusters and energy storage converters in power energy storage systems

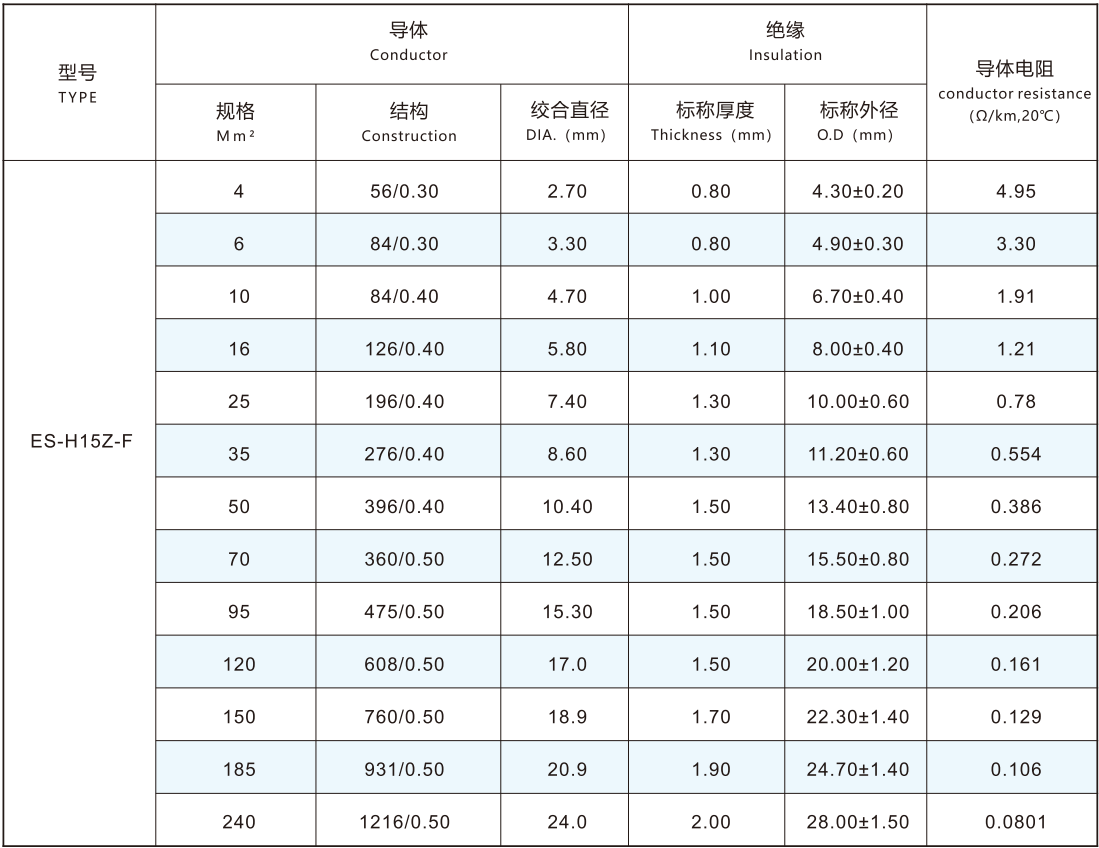

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
